Supplier’s name or trade mark: CHANGZHOU TOPKING
INTERNATIONAL TRADE CO.LTD
|
Supplier’s address: Room 409, No.1 Fuchen
Building No.8 Taihu
East Road, Changzhou, Jiangsu,
China
|
Model
identifier:G45 4W
|
Type of light source:LED
|
Lighting technology
used:
|
LED
|
Non-directional or directional:
|
NDLS
|
Mains or non-mains:
|
MLS
|
Connected light source (CLS):
|
NO
|
Colour-tuneable light source:
|
NO
|
Envelope:
|
NO
|
High
luminance light source:
|
NO
|
|
|
Anti-glare shield:
|
NO
|
Dimmable:
|
NO
|
Product
parameters
|
Parameter
|
4W
|
Parameter
|
2700K
|
General product
parameters:
|
Energy consumption
in on-mode (kWh/1 000
h)
|
4W
|
Energy efficiency
class
|
F
|
Useful luminous flux (Φuse), indicating
if it refers to the flux
in a sphere (360°), in a wide
cone (120°) or in a narrow cone (90°)
|
435Lm
|
Correlated colour temperature, rounded to the nearest
100 K, or the range of correlated colour temperatures, rounded to the nearest 100 K, that can be set
|
2700K
|
On-mode power (Pon), expressed in W
|
4W
|
Standby power (Psb), expressed in W and rounded to the second decimal
|
NO
|
Networked standby power (Pnet) for CLS, expressed in W and rounded to the second decimal
|
NO
|
Colour rendering index, rounded to the nearest
integer, or the range of CRI-values that can be set
|
80
|
Outer
dimensions without separate control gear, lighting control parts and non-lighting control parts, if any (millimetre)
|
Height
|
76 mm
|

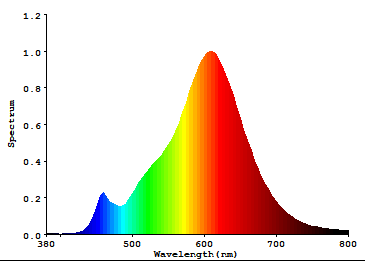

Spectral power distribution in the range 250 nm to 800 nm, at full-load
|
|
Width
|
45 mm
|
Depth
|
|
Claim of equivalent
power (3)
|
YES
|
If yes, equivalent power (W)
|
40W
|
|
|
Chromaticity coordinates
(x and y)
|
0.485
0,427
|
Parameters for directional light sources:
|
Peak luminous intensity (cd)N/A
|
N/A
|
Beam angle in degrees, or the range of beam angles that can be set
|
N/A
|
Parameters for LED and OLED light sources:
|
R9
colour rendering index value
|
3
|
Survival factor
|
0,90
|
the lumen maintenance factor
|
0.93,5
|
|
|
Parameters for LED and OLED mains light sources:
|
displacement factor
(cos φ1)
|
0,5
|
Colour consistency
in McAdam ellipses
|
6
|
Claims that an
LED light source replaces a fluorescent light source without integrated ballast of a particular wattage.
|
NO
|
If yes then replacement claim (W)
|
|
Flicker metric (Pst LM)
|
1
|
Stroboscopic effect metric (SVM)
|
0.4
|
